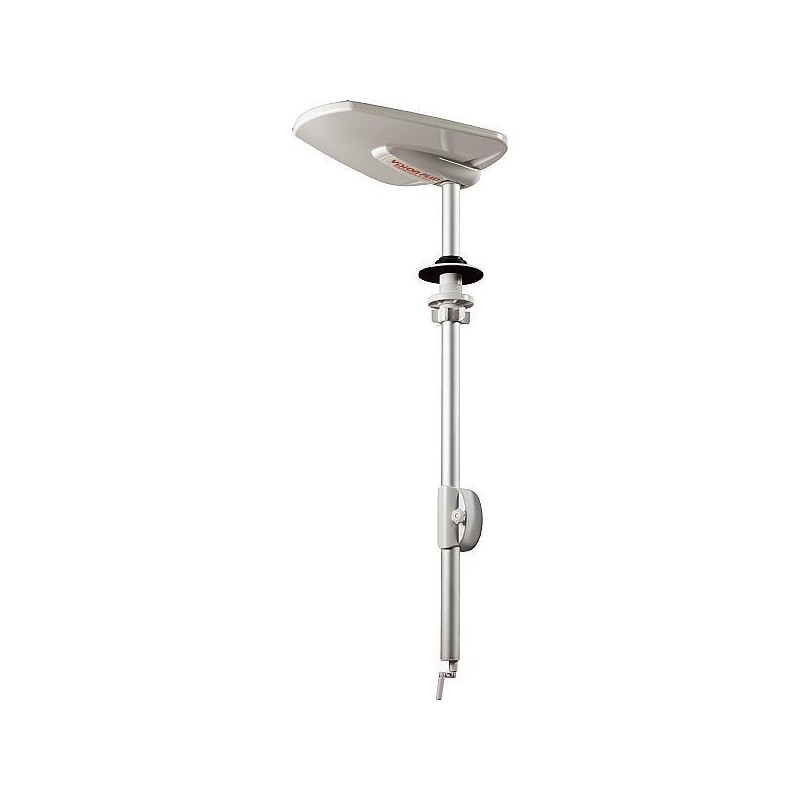

Status 580 Directional Tv Aerial

For more than 10 years the Status 530 TV Antenna has lead the way but as we enter this new Digital era we have taken up the challenge to develop something which includes a host of new features which will also allow you to tune in your TV in seconds The all new Status 580!

New features:

• Unique integrated TV Signal Finder
• Horizontal & Vertical Polarisation Indicator
• Low Profile Roof Assembly
• DAB & FM Radio Reception
• Internal FM radio antennas

At the heart of this new antenna system is the Vision Plus VP5 Digital TV Amplifier with unique integral Signal Finder. With its neat, slim-line design, the VP5 offers the latest in TV / Radio reception technology and features:

• Slim-line compact design
• Digital TV, DAB and FM Radio reception
• Dedicated TV Transmitter locator Signal Finder
• LED light power indicator with red, yellow and green colours to indicate signal strength
• Variable Gain Control for strong and weak signal areas
• 2 TV Connections and 1 dedicated Radio connection
• 12 24V DC Power Input connection
• Antenna IN connection
• On / Off Power switch
• 3 year guarantee

Dimensions

• Mast Length 920mm
• Mast intrusion into locker 875mm inc winding handle (Roof cavity being 3cm approx)
• Antenna dome Installed - Length 412mm - Width 348mm - Height 108mm
• Mounting Foot & Gaiter - Diameter 122mm - Height 35mm - Roof cavity range 25-50mm

Please note that the roof mounting assembly kit that is supplied with this product is not suitable for sloping roofs.
